Product Overview

A 250kVA generator is typically connected to a distribution system rather than individual outlets. Phase balance, fault protection, neutral treatment and the order of motor starting therefore become central design inputs.

Kaichen Power coordinates the generator output and controls with the proposed switchboard interface. Package form, cable termination, auxiliary supply and monitoring are confirmed in drawings so the site team can prepare civil and electrical work around a known boundary.

Reference Configuration

The following items define the inquiry configuration. Final component data and performance values are confirmed in the approved project datasheet; unspecified choices are not implied by the product title.

Parameter	Configuration Basis
Headline capacity	250 kVA product class with duty and applicable site rating stated
Distribution	Three-phase board connection arranged to project voltage and frequency
Protection	Generator breaker and downstream coordination reviewed as a system
Neutral and earth	Bonding and conductor arrangement defined for the installation
Load response	Motor starting and staged transfer evaluated
Package form	Open skid, canopy or container-style enclosure
Monitoring	Local controller with selectable remote communication
Site preparation	Foundation, cable entry, airflow and exhaust interfaces documented

Coordinate the Main Electrical Interface

Provide switchboard ratings and protective-device information.

State whether the neutral is switched or solidly connected.

Identify unbalanced single-phase loads on the distribution.

Confirm cable or bus routing before the terminal box is finalized.

Three-Phase System Applications

Commercial complexes with centralized emergency boards.
Industrial utilities and selected process equipment.
Municipal pumping, treatment and infrastructure sites.
Large agricultural or cold-storage operations.

Issue an Electrical Interface Sheet

Send the single-line diagram and intended connection point.

List motor starters, drives and the sequence of reconnection.

Define required breaker, metering and protection scope.

Confirm remote-control protocol or hardwired signals.

Approve terminal orientation and cable-entry space.

Product and Component Images

product-1400-1050

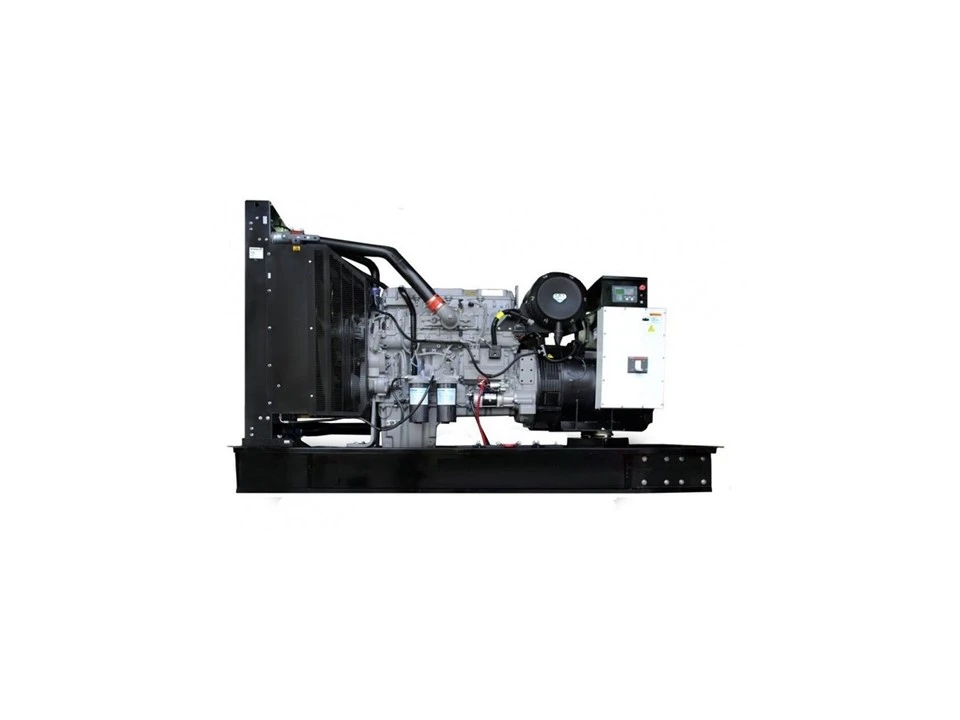

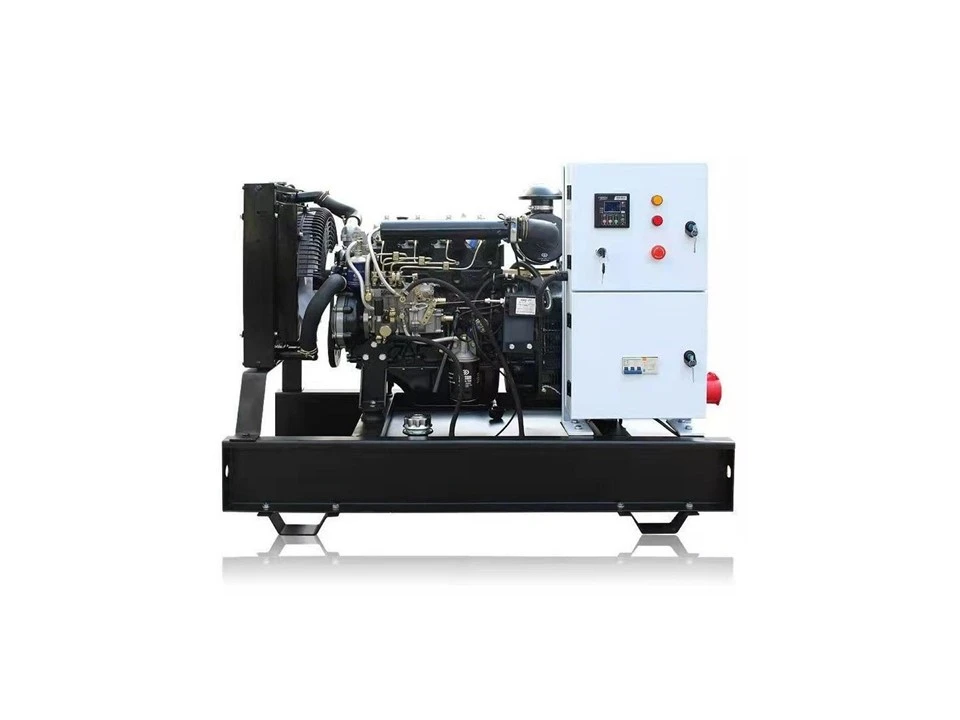

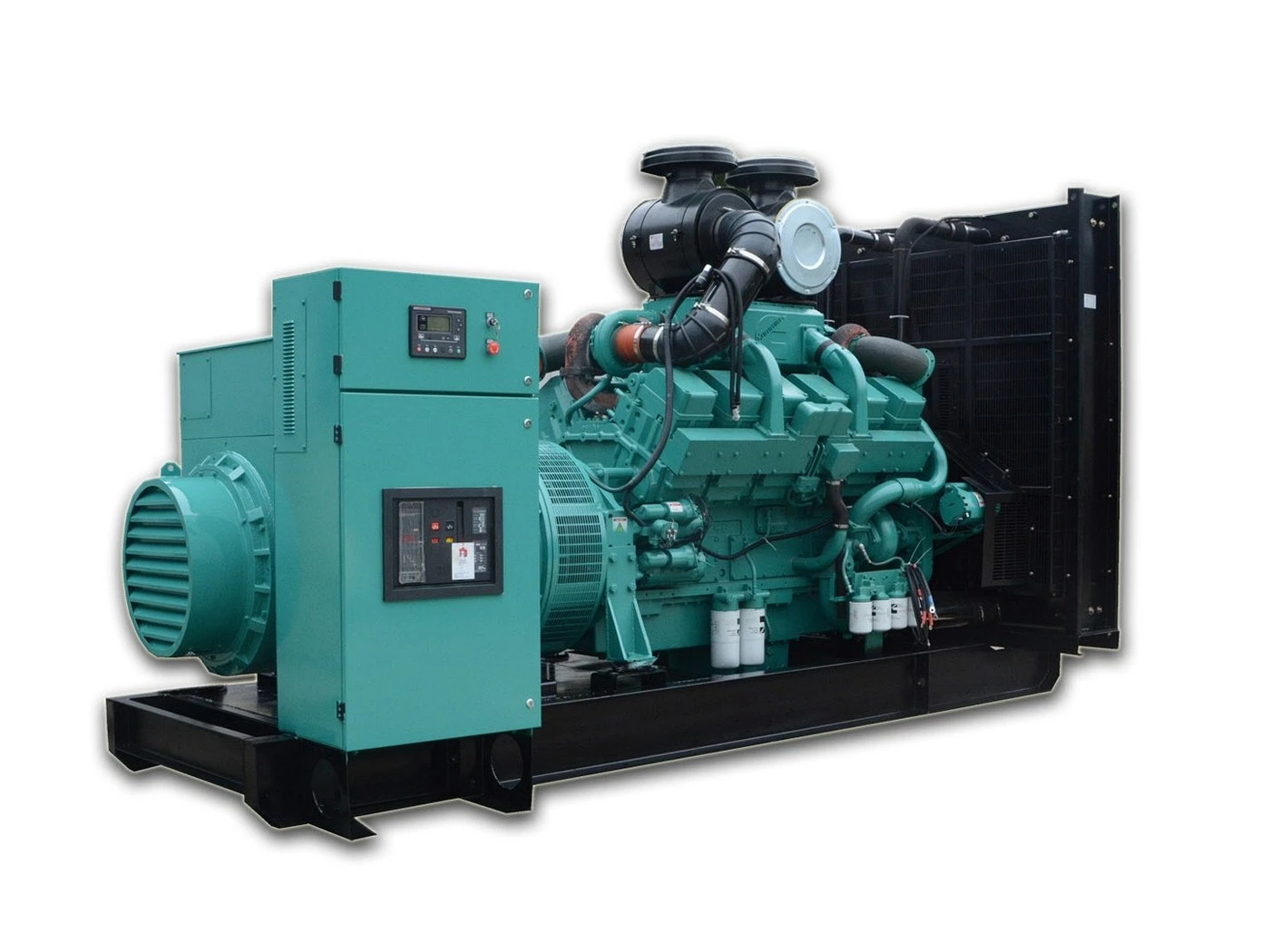

Alternate enclosure or frame view for 250kVA Generator configuration planning

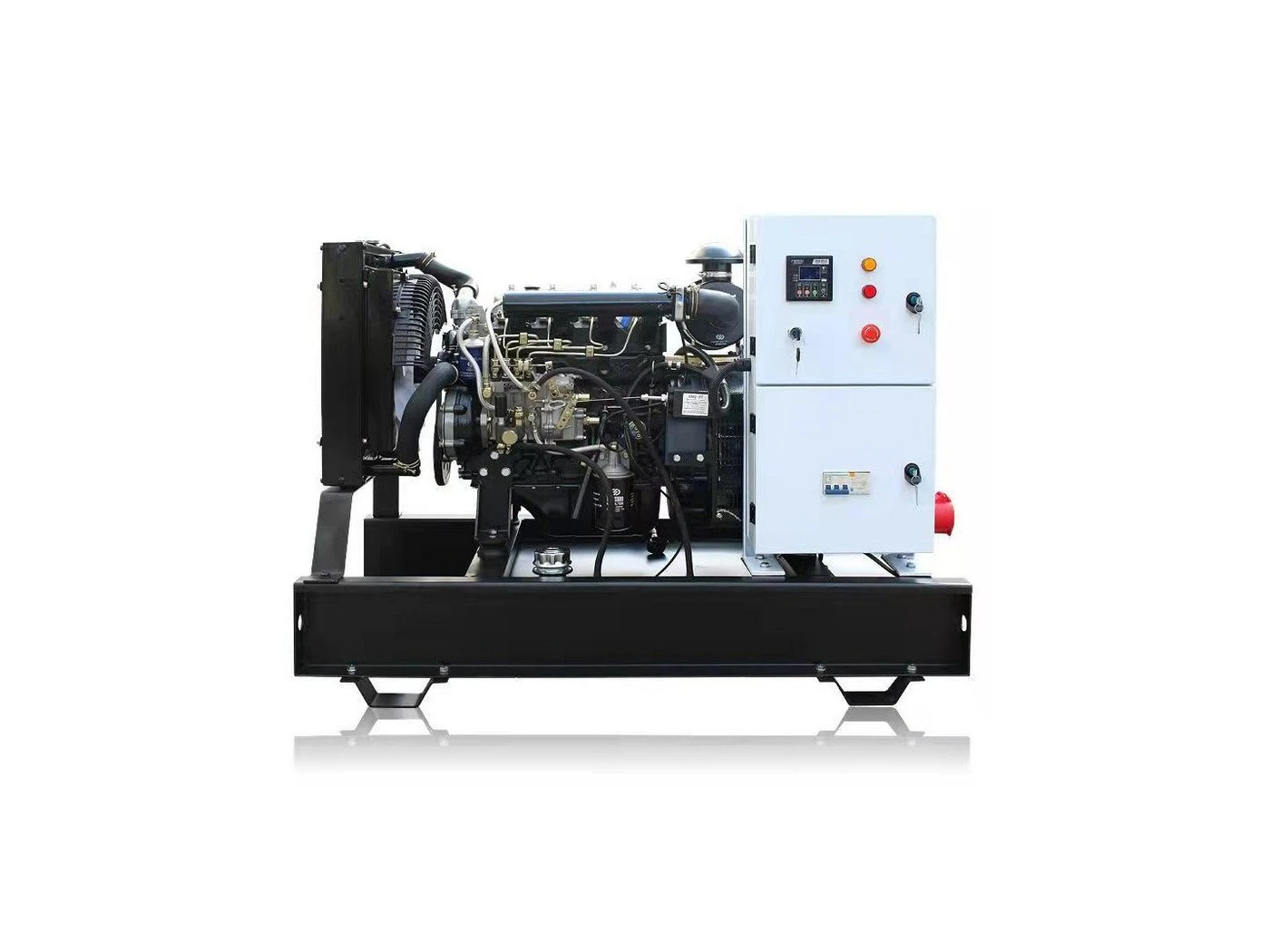

Service-access view used during 250kVA Generator layout review

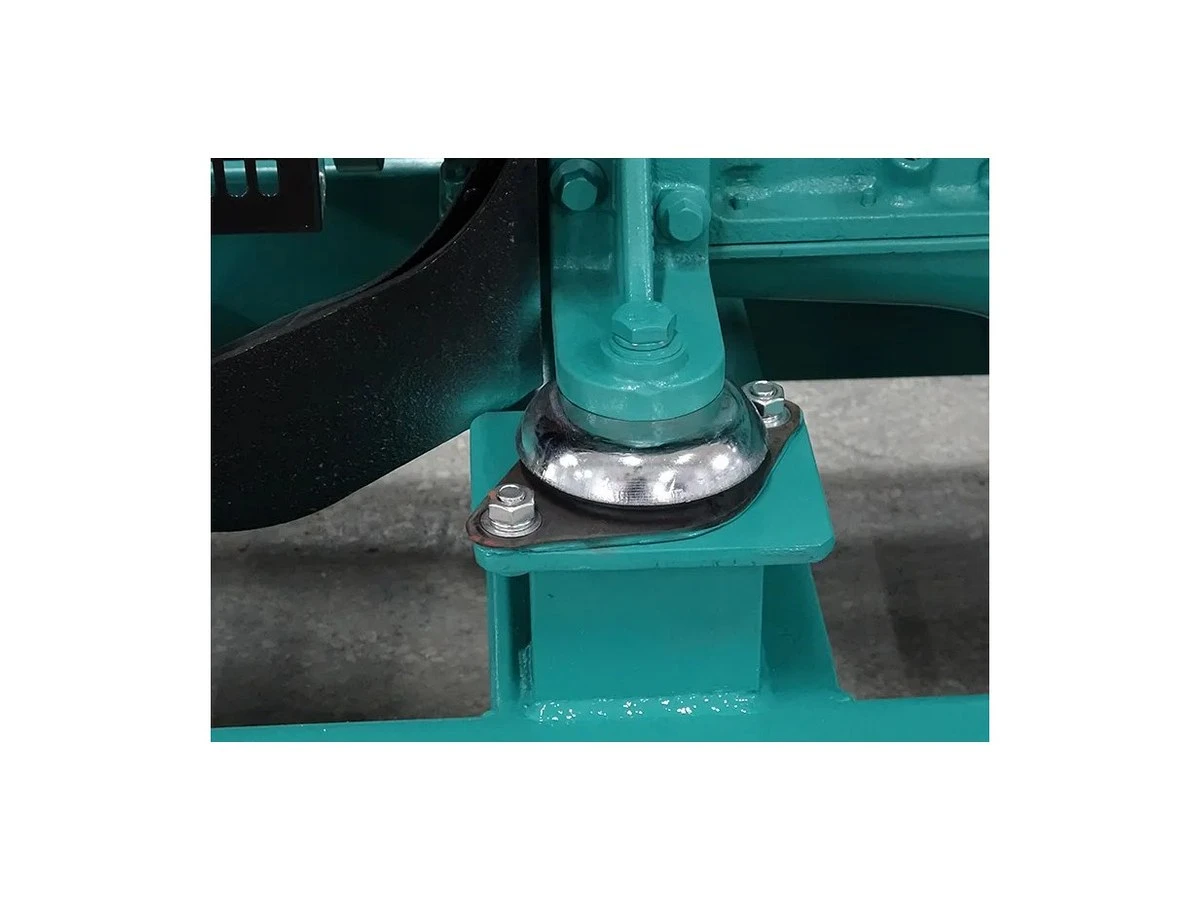

Anti-vibration base and mounting detail

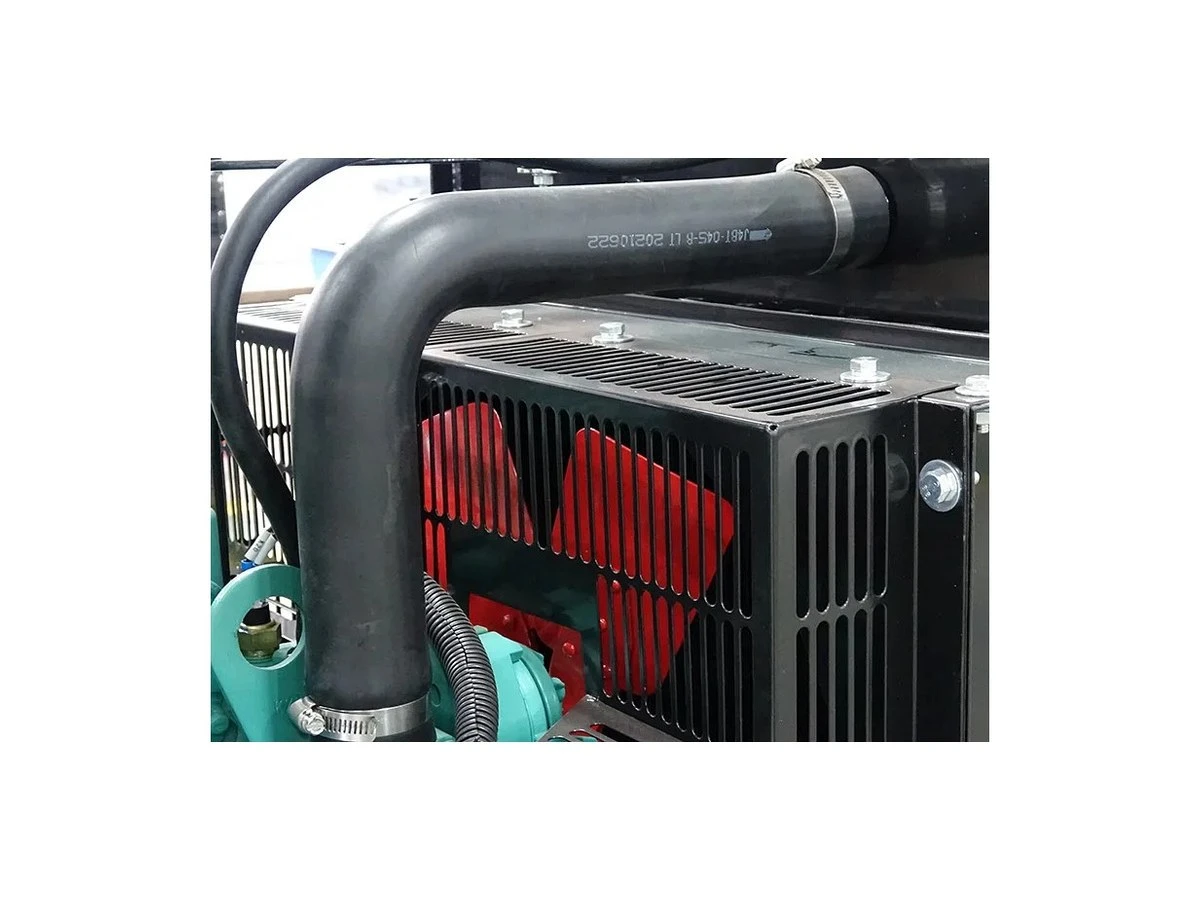

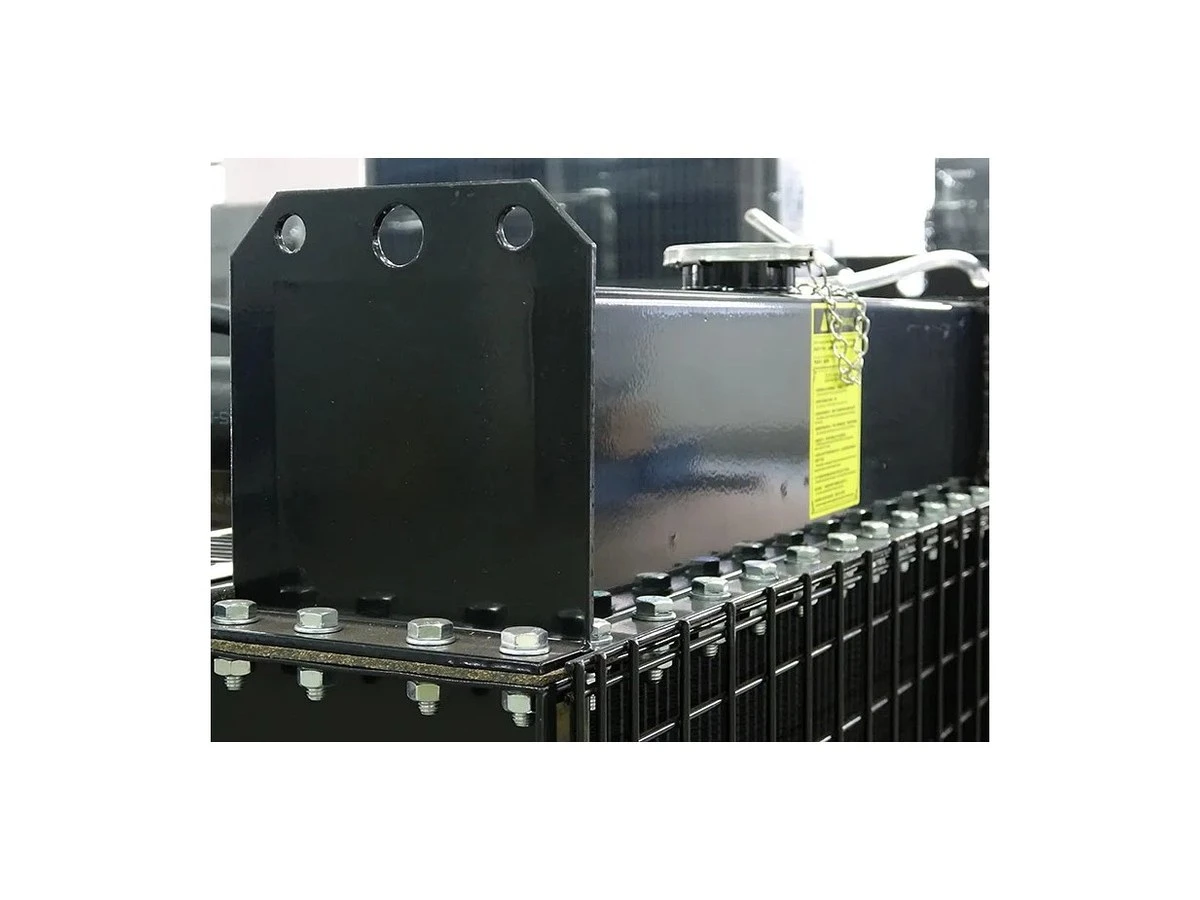

Cooling, battery or service component detail

Factory Assembly and Technical Confirmation

product-1200-900

Factory-style assembly detail for project review

Jiangsu Kaichen Electric Power Equipment Co., Ltd. builds diesel generator packages for standby, prime and mobile duties. Each order is released from a confirmed technical sheet covering rating, electrical output, controls, enclosure, site conditions and selected options.

Frequently Asked Questions

Q: Is the output always three phase?

A: The final electrical arrangement follows the project distribution and approved build.

Q: Can single-phase loads be connected?

A: They may be distributed across phases after imbalance and neutral current are checked.

Q: Is a synchronization panel included?

A: Synchronization is a project option requiring a defined operating and protection scheme.

Q: Why is terminal orientation important?

A: Cable bending radius, access and enclosure layout can be affected by the connection direction.

Request a Kaichen Configuration Review

For a 250kVA Generator proposal, send the connected-load list, required duty, voltage, frequency, phase, site conditions, enclosure preference, control interface and fuel-runtime target. Kaichen Power will return a project-specific configuration for technical approval before quotation or production.
