Hey there! As a supplier of industrial diesel generator sets, I often get asked about how to measure the phase balance of these beasts. It's a crucial aspect, especially when you're relying on these generators for power in industrial settings. So, let's dive right into it.
Why is Phase Balance Important?
Before we get into the measurement part, let's quickly talk about why phase balance matters. In an industrial diesel generator set, a balanced phase is essential for the smooth operation of electrical equipment. When the phases are balanced, the load is evenly distributed across all three phases. This means less wear and tear on the generator and the connected equipment, leading to longer service life and fewer breakdowns.
On the flip side, an unbalanced phase can cause all sorts of problems. It can lead to overheating of the generator windings, reduced efficiency, and even damage to the connected electrical devices. So, keeping an eye on the phase balance is definitely worth it.
Tools You'll Need
To measure the phase balance of an industrial diesel generator set, you'll need a few tools. The most important one is a power analyzer. This device can measure voltage, current, power, and other electrical parameters for each phase. You can find power analyzers in different shapes and sizes, but make sure you choose one that's suitable for the size and type of your generator set.
In addition to the power analyzer, you'll also need some basic electrical testing equipment like multimeters and clamp meters. These tools can help you double - check the readings and ensure the accuracy of your measurements.
Step - by - Step Measurement Process
Step 1: Prepare the Generator
Before you start taking measurements, make sure the generator is in a stable operating condition. Let it run for a few minutes to reach a steady state. This is important because the electrical parameters can vary during the startup and shutdown phases.
Step 2: Connect the Power Analyzer
Connect the power analyzer to the generator's electrical system. Make sure you follow the manufacturer's instructions carefully. You'll typically need to connect the voltage probes to the phase lines and the current clamps to the phase conductors.
Step 3: Take the Measurements
Once the power analyzer is connected, start taking measurements. The power analyzer will display the voltage, current, and power for each phase. Write down these values for later analysis.
Step 4: Calculate the Phase Imbalance
To calculate the phase imbalance, you need to find the difference between the highest and lowest values of voltage or current for each phase. Then, divide this difference by the average value of the three phases. For example, if the voltages of the three phases are V1, V2, and V3, the average voltage (V_avg) is (V1 + V2+ V3) / 3. The phase imbalance percentage for voltage is calculated as [(Max(V1, V2, V3) - Min(V1, V2, V3)) / V_avg] * 100.
Step 5: Evaluate the Results
The acceptable level of phase imbalance depends on the specific requirements of your application. In general, a phase imbalance of less than 3% is considered acceptable for most industrial applications. If the phase imbalance is higher than this, you may need to take corrective actions.
Corrective Actions
If you find that the phase balance of your industrial diesel generator set is out of the acceptable range, there are a few things you can do. First, check the load distribution. Make sure the electrical load is evenly distributed across all three phases. You may need to rearrange the connected equipment to achieve a more balanced load.
Another possible cause of phase imbalance is a fault in the generator's electrical system. Check for loose connections, damaged wires, or faulty components. If you're not comfortable doing this yourself, it's best to call in a professional electrician.
Different Types of Industrial Diesel Generator Sets
We offer a variety of industrial diesel generator sets to meet different needs. If you're looking for a Standby Diesel Generator Set, we've got you covered. These generators are designed to provide backup power in case of a main power outage. They're reliable and can be quickly activated when needed.
For those who need continuous power, our Prime Power Diesel Generator is a great option. These generators are built to run for long periods and can handle heavy loads.

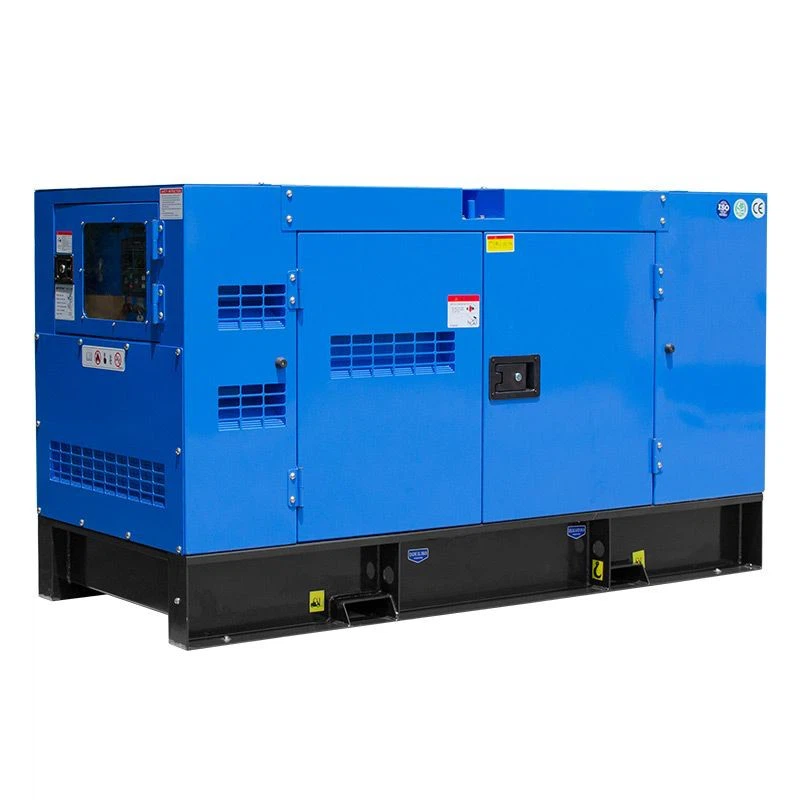

If you're in the construction industry, our Construction Diesel Generator is specifically designed for the rugged conditions of construction sites. It's portable, easy to operate, and can provide the power you need to keep your construction equipment running.
Wrapping Up
Measuring the phase balance of an industrial diesel generator set is an important part of maintaining its performance and reliability. By following the steps I've outlined above, you can ensure that your generator is operating at its best.
If you're in the market for an industrial diesel generator set or have any questions about phase balance or other aspects of generator operation, don't hesitate to reach out. We're here to help you find the right generator for your needs and ensure its proper operation.
